VELA maintenance free battery widely used for UPS system
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
L/C,T/T
Supply Ability:
1000000 per Month
Enterprise Strength
- VELA Industrial Battery insists on the principle to be active, prompt, and thoughtful. We are dedicated to providing professional and efficient services for customers.
1. The design of VELA maintenance free battery is completed by a dedicated technical team of CAD/CAM designers and structural engineers who try to design a long-lasting tent.
2. The product features great compatibility. The materials used would not easily react with biological tissues, cells, and body fluids.
3. The product features strong weather resistance. It is able to hold up when exposed to heat, cold, rain and snow.
4. With so many advantages, the product has a very good prospect in future market applications.
product description

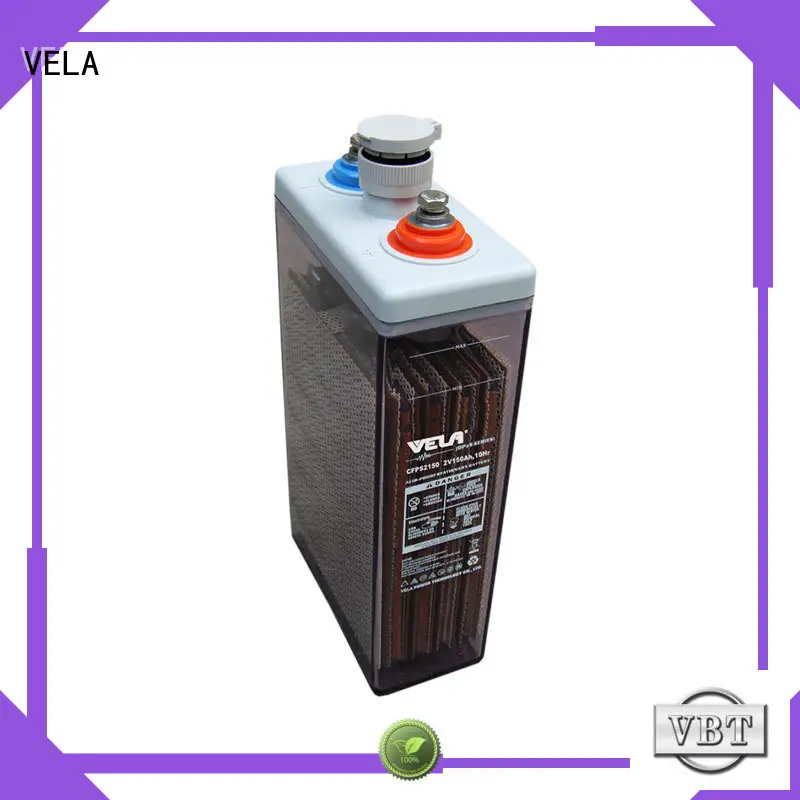

CFPS & LFPS battery is the flooded battery with tubular plate. The users need to maintain and keep the enough electrolyte for the battery to discharge. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. There is the acid-proof bolt. It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte. Its cycle life is the longest in our VRLA battery. The service life can up to 18 years in the 20℃
Application
Features
Long cycle life
Low self discharge rate
High porosity
Good corrosion resistance
Low self discharge rate
High porosity
Good corrosion resistance
General Technical Specifications
| Model | Rated Voltage (V) | Rated Capacity (AH) | Dimensions（mm/in） | Weight ±4%(Kg) | Number of post of the same polarity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Dry | wet | Acid weight(d=1.24kg/L) | |||||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | Kg | Lbs | Kg | Lbs | ||||
| CFPS2100 | 2 | 100 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 8.5 | 18.74 | 13.5 | 29.76 | 5 | 11.02 | 1 |
| CFPS2150 | 2 | 150 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 11 | 24.25 | 15.5 | 34.17 | 4.5 | 9.92 | 1 |
| CFPS2200 | 2 | 200 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 13.5 | 29.76 | 17.5 | 38.58 | 4 | 8.82 | 1 |
| CFPS2250 | 2 | 250 | 124 | 4.88 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 16 | 35.27 | 21 | 46.3 | 5 | 11.02 | 1 |
| CFPS2300 | 2 | 300 | 145 | 5.71 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 18.5 | 40.79 | 24.5 | 54.01 | 6 | 13.23 | 1 |
| CFPS2350 | 2 | 350 | 124 | 4.88 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 21 | 46.3 | 28 | 61.73 | 7 | 15.43 | 1 |
| CFPS2420 | 2 | 420 | 145 | 5.71 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 24.5 | 54.01 | 33 | 72.75 | 8.5 | 18.74 | 1 |
| CFPS2500 | 2 | 500 | 166 | 6.54 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 26 | 57.32 | 36 | 79.37 | 10 | 22.05 | 1 |
| CFPS2600 | 2 | 600 | 145 | 5.71 | 206 | 8.1 | 645 | 25.4 | 700 | 27.6 | 31 | 68.34 | 43 | 94.8 | 12 | 26.46 | 1 |
| CFPS2770 | 2 | 770 | 253 | 9.96 | 210 | 8.3 | 472 | 18.6 | 527 | 20.8 | 42.5 | 93.7 | 58 | 127.87 | 15.5 | 34.17 | 1 |
| CFPS2800 | 2 | 800 | 191 | 7.52 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 44 | 97 | 60 | 132.28 | 16 | 35.27 | 2 |
| CFPS21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 52 | 114.6 | 72 | 158.73 | 20 | 44.09 | 2 |
| CFPS21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 62 | 136.7 | 86 | 189.6 | 24 | 52.91 | 2 |
| CFPS21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.3 | 795 | 31.3 | 850 | 33.5 | 75 | 165.4 | 105 | 231.49 | 30 | 66.14 | 2 |
| CFPS22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.3 | 771 | 30.4 | 826 | 32.5 | 108 | 238.1 | 150 | 330.69 | 42 | 92.59 | 3 |
| CFPS22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 130 | 286.6 | 183 | 403.45 | 52 | 114.6 | 4 |
| CFPS23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 157 | 346.1 | 220 | 485.02 | 63 | 138.9 | 4 |
| LFPS680 | 6 | 80 | 194 | 7.64 | 170 | 6.7 | 205 | 8.07 | 210 | 8.27 | 11.4 | 25.13 | 14 | 30.86 | 2.6 | 5.73 | 1 |
| LFPS6100 | 6 | 100 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 13.6 | 29.98 | 19 | 41.89 | 5.4 | 11.9 | |
| LFPS6120 | 6 | 120 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 15.5 | 34.17 | 22 | 48.5 | 6.5 | 14.33 | |
| LFPS6140 | 6 | 140 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 17.7 | 39.02 | 25 | 55.12 | 7.3 | 16.09 | |
| LFPS6140E | 6 | 140 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.2 | 40.12 | 26 | 57.32 | 7.8 | 17.2 | |
| LFPS6160 | 6 | 160 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.5 | 40.79 | 27 | 59.52 | 8.5 | 18.74 | |
| LFPS6180E | 6 | 180 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 19.5 | 42.99 | 29 | 63.93 | 9.5 | 20.94 | |
| LFPS6180 | 6 | 180 | 321 | 12.6 | 176 | 6.9 | 226 | 8.9 | 229 | 9.02 | 20.5 | 45.19 | 30.5 | 67.24 | 10 | 22.05 | |
| LFPS1260 | 12 | 60 | 260 | 10.2 | 168 | 6.6 | 211 | 8.31 | 233 | 9.17 | 15.9 | 35.05 | 20.8 | 45.86 | 4.9 | 10.8 | |
| LFPS1280E | 12 | 80 | 306 | 12.1 | 169 | 6.7 | 211 | 8.31 | 233 | 9.17 | 20.7 | 45.64 | 27.5 | 60.63 | 6.8 | 14.99 | |
| LFPS1280 | 12 | 80 | 330 | 13 | 171 | 6.7 | 214 | 8.43 | 220 | 8.66 | 20 | 44.09 | 27.8 | 61.29 | 7.8 | 17.2 | |
| LFPS12100 | 12 | 100 | 409 | 16.1 | 176 | 6.9 | 225 | 8.86 | 225 | 8.86 | 24.5 | 54.01 | 35 | 77.16 | 10.5 | 23.15 | |
| LFPS12120 | 12 | 120 | 485 | 19.1 | 172 | 6.8 | 240 | 9.45 | 240 | 9.45 | 29.4 | 64.82 | 42.5 | 93.7 | 13.1 | 28.88 | |
| LFPS12140 | 12 | 140 | 494 | 19.5 | 206 | 8.1 | 209 | 8.23 | 235 | 9.25 | 31.8 | 70.11 | 46.5 | 102.51 | 14.7 | 32.41 | |
| LFPS12140A | 12 | 140 | 532 | 20.9 | 207 | 8.2 | 215 | 8.46 | 240 | 9.45 | 32.5 | 71.65 | 48.5 | 106.92 | 16 | 35.27 | |
| LFPS12160 | 12 | 160 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 36.7 | 80.91 | 53.5 | 117.95 | 16.8 | 37.04 | |
| LFPS12180 | 12 | 180 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 41.6 | 91.71 | 60.5 | 133.38 | 18.9 | 41.67 | |
| LFPS12180H | 12 | 180 | 522 | 20.6 | 269 | 11 | 220 | 8.66 | 220 | 8.66 | 42.5 | 93.7 | 62.5 | 137.79 | 20 | 44.09 | |
| LFPS12200 | 12 | 200 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 46.5 | 102.5 | 67.5 | 148.81 | 21 | 46.3 | |
| LFPS12220 | 12 | 220 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 50.4 | 111.1 | 73.5 | 162.04 | 23.1 | 50.93 | |
Company Features
1. By integrating deep cycle battery and ups batteries , VELA has enough confidence to offer maintenance free battery with high quality and affordable price.
2. VELA Power Technology Co., Ltd. has fostered its own research and development capabilities in golf cart batteries field.
3. VELA Power Technology Co., Ltd. will try our best with traction battery to meet the needs of global users. Contact! Our ongoing effort to serve the best industrial battery will be conducive to the development of VELA. Contact! VELA Power Technology Co., Ltd. succeed through partner work with customers elevating our performance to higher levels. Contact! VELA strives to be the most dominant industrial battery manufacturers supplier. Contact!
