CFPS & LFPS battery
5.0
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Minimum Order Quantity:
100 PCS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
L/C,T/T
Supply Ability:
1000000 per Month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
product description

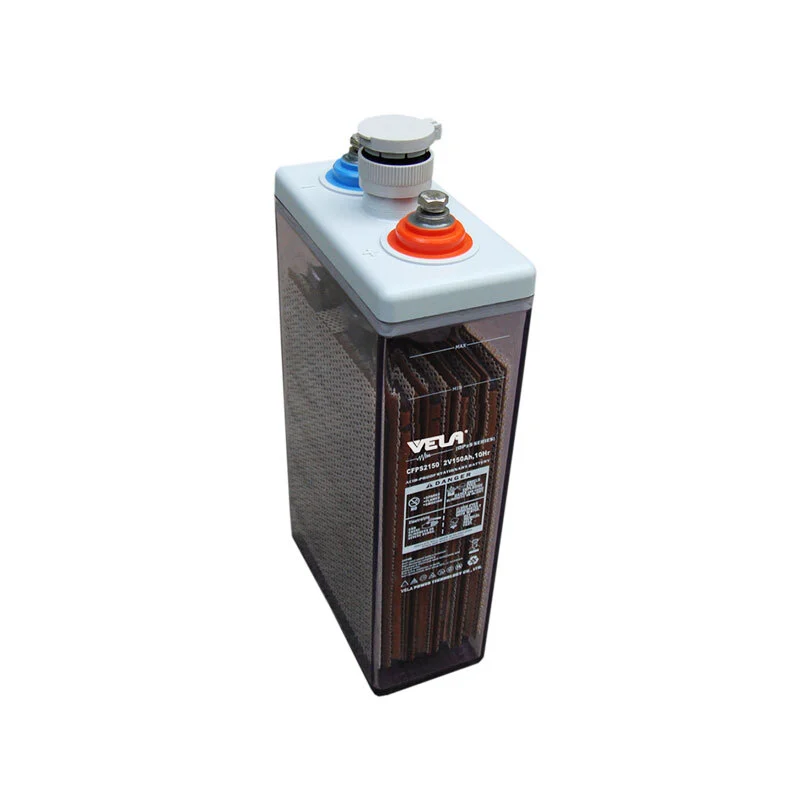

CFPS & LFPS battery is the flooded battery with tubular plate. The users need to maintain and keep the enough electrolyte for the battery to discharge. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. There is the acid-proof bolt. It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte. Its cycle life is the longest in our VRLA battery. The service life can up to 18 years in the 20℃
Application
Features
Long cycle life
Low self discharge rate
High porosity
Good corrosion resistance
Low self discharge rate
High porosity
Good corrosion resistance
General Technical Specifications
| Model | Rated Voltage (V) | Rated Capacity (AH) | Dimensions（mm/in） | Weight ±4%(Kg) | Number of post of the same polarity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Dry | wet | Acid weight(d=1.24kg/L) | |||||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | Kg | Lbs | Kg | Lbs | ||||
| CFPS2100 | 2 | 100 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 8.5 | 18.74 | 13.5 | 29.76 | 5 | 11.02 | 1 |
| CFPS2150 | 2 | 150 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 11 | 24.25 | 15.5 | 34.17 | 4.5 | 9.92 | 1 |
| CFPS2200 | 2 | 200 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 13.5 | 29.76 | 17.5 | 38.58 | 4 | 8.82 | 1 |
| CFPS2250 | 2 | 250 | 124 | 4.88 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 16 | 35.27 | 21 | 46.3 | 5 | 11.02 | 1 |
| CFPS2300 | 2 | 300 | 145 | 5.71 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 18.5 | 40.79 | 24.5 | 54.01 | 6 | 13.23 | 1 |
| CFPS2350 | 2 | 350 | 124 | 4.88 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 21 | 46.3 | 28 | 61.73 | 7 | 15.43 | 1 |
| CFPS2420 | 2 | 420 | 145 | 5.71 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 24.5 | 54.01 | 33 | 72.75 | 8.5 | 18.74 | 1 |
| CFPS2500 | 2 | 500 | 166 | 6.54 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 26 | 57.32 | 36 | 79.37 | 10 | 22.05 | 1 |
| CFPS2600 | 2 | 600 | 145 | 5.71 | 206 | 8.1 | 645 | 25.4 | 700 | 27.6 | 31 | 68.34 | 43 | 94.8 | 12 | 26.46 | 1 |
| CFPS2770 | 2 | 770 | 253 | 9.96 | 210 | 8.3 | 472 | 18.6 | 527 | 20.8 | 42.5 | 93.7 | 58 | 127.87 | 15.5 | 34.17 | 1 |
| CFPS2800 | 2 | 800 | 191 | 7.52 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 44 | 97 | 60 | 132.28 | 16 | 35.27 | 2 |
| CFPS21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 52 | 114.6 | 72 | 158.73 | 20 | 44.09 | 2 |
| CFPS21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 62 | 136.7 | 86 | 189.6 | 24 | 52.91 | 2 |
| CFPS21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.3 | 795 | 31.3 | 850 | 33.5 | 75 | 165.4 | 105 | 231.49 | 30 | 66.14 | 2 |
| CFPS22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.3 | 771 | 30.4 | 826 | 32.5 | 108 | 238.1 | 150 | 330.69 | 42 | 92.59 | 3 |
| CFPS22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 130 | 286.6 | 183 | 403.45 | 52 | 114.6 | 4 |
| CFPS23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 157 | 346.1 | 220 | 485.02 | 63 | 138.9 | 4 |
| LFPS680 | 6 | 80 | 194 | 7.64 | 170 | 6.7 | 205 | 8.07 | 210 | 8.27 | 11.4 | 25.13 | 14 | 30.86 | 2.6 | 5.73 | 1 |
| LFPS6100 | 6 | 100 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 13.6 | 29.98 | 19 | 41.89 | 5.4 | 11.9 | |
| LFPS6120 | 6 | 120 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 15.5 | 34.17 | 22 | 48.5 | 6.5 | 14.33 | |
| LFPS6140 | 6 | 140 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 17.7 | 39.02 | 25 | 55.12 | 7.3 | 16.09 | |
| LFPS6140E | 6 | 140 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.2 | 40.12 | 26 | 57.32 | 7.8 | 17.2 | |
| LFPS6160 | 6 | 160 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.5 | 40.79 | 27 | 59.52 | 8.5 | 18.74 | |
| LFPS6180E | 6 | 180 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 19.5 | 42.99 | 29 | 63.93 | 9.5 | 20.94 | |
| LFPS6180 | 6 | 180 | 321 | 12.6 | 176 | 6.9 | 226 | 8.9 | 229 | 9.02 | 20.5 | 45.19 | 30.5 | 67.24 | 10 | 22.05 | |
| LFPS1260 | 12 | 60 | 260 | 10.2 | 168 | 6.6 | 211 | 8.31 | 233 | 9.17 | 15.9 | 35.05 | 20.8 | 45.86 | 4.9 | 10.8 | |
| LFPS1280E | 12 | 80 | 306 | 12.1 | 169 | 6.7 | 211 | 8.31 | 233 | 9.17 | 20.7 | 45.64 | 27.5 | 60.63 | 6.8 | 14.99 | |
| LFPS1280 | 12 | 80 | 330 | 13 | 171 | 6.7 | 214 | 8.43 | 220 | 8.66 | 20 | 44.09 | 27.8 | 61.29 | 7.8 | 17.2 | |
| LFPS12100 | 12 | 100 | 409 | 16.1 | 176 | 6.9 | 225 | 8.86 | 225 | 8.86 | 24.5 | 54.01 | 35 | 77.16 | 10.5 | 23.15 | |
| LFPS12120 | 12 | 120 | 485 | 19.1 | 172 | 6.8 | 240 | 9.45 | 240 | 9.45 | 29.4 | 64.82 | 42.5 | 93.7 | 13.1 | 28.88 | |
| LFPS12140 | 12 | 140 | 494 | 19.5 | 206 | 8.1 | 209 | 8.23 | 235 | 9.25 | 31.8 | 70.11 | 46.5 | 102.51 | 14.7 | 32.41 | |
| LFPS12140A | 12 | 140 | 532 | 20.9 | 207 | 8.2 | 215 | 8.46 | 240 | 9.45 | 32.5 | 71.65 | 48.5 | 106.92 | 16 | 35.27 | |
| LFPS12160 | 12 | 160 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 36.7 | 80.91 | 53.5 | 117.95 | 16.8 | 37.04 | |
| LFPS12180 | 12 | 180 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 41.6 | 91.71 | 60.5 | 133.38 | 18.9 | 41.67 | |
| LFPS12180H | 12 | 180 | 522 | 20.6 | 269 | 11 | 220 | 8.66 | 220 | 8.66 | 42.5 | 93.7 | 62.5 | 137.79 | 20 | 44.09 | |
| LFPS12200 | 12 | 200 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 46.5 | 102.5 | 67.5 | 148.81 | 21 | 46.3 | |
| LFPS12220 | 12 | 220 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 50.4 | 111.1 | 73.5 | 162.04 | 23.1 | 50.93 | |
