VELA maintenance free battery best for power plant
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
L/C,T/T
Supply Ability:
1000000 per Month
Product Details
VELA Industrial Battery pursues excellent quality and strives for perfection in every detail during the production.VELA Industrial Battery's industrial battery is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.
1. VELA ups batteries has passed compression and aging tests. These tests are conducted by our experienced technicians who utilize our state-of-the-art lab in order to monitor every aspect of production.
2. The product is not easy to crack and warp. It is able to expand and contract flexibly to stand up the extremely high temperatures.
3. According to customers' needs, VELA Power Technology Co., Ltd. can work out one-on-one solutions.
4. Representatives and exclusive distributors of VELA Power Technology Co., Ltd. support its product sales.
product description

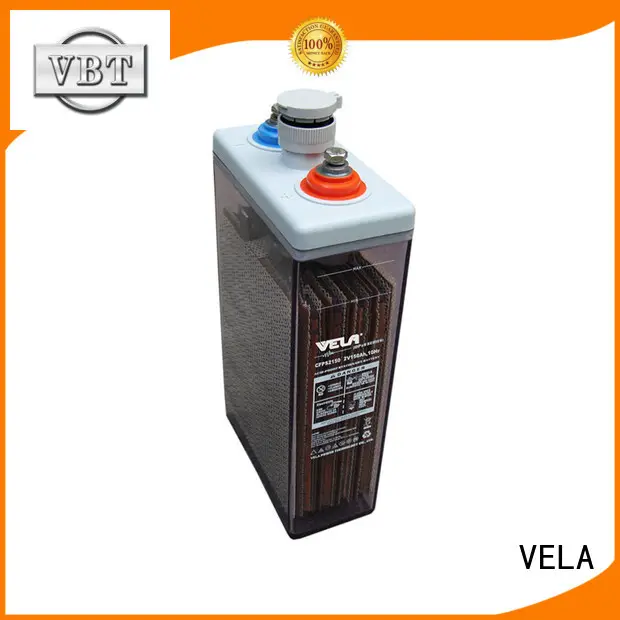

CFPS & LFPS battery is the flooded battery with tubular plate. The users need to maintain and keep the enough electrolyte for the battery to discharge. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. There is the acid-proof bolt. It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte. Its cycle life is the longest in our VRLA battery. The service life can up to 18 years in the 20℃
Application
Features
Long cycle life
Low self discharge rate
High porosity
Good corrosion resistance
Low self discharge rate
High porosity
Good corrosion resistance
General Technical Specifications
| Model | Rated Voltage (V) | Rated Capacity (AH) | Dimensions（mm/in） | Weight ±4%(Kg) | Number of post of the same polarity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Dry | wet | Acid weight(d=1.24kg/L) | |||||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | Kg | Lbs | Kg | Lbs | ||||
| CFPS2100 | 2 | 100 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 8.5 | 18.74 | 13.5 | 29.76 | 5 | 11.02 | 1 |
| CFPS2150 | 2 | 150 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 11 | 24.25 | 15.5 | 34.17 | 4.5 | 9.92 | 1 |
| CFPS2200 | 2 | 200 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 13.5 | 29.76 | 17.5 | 38.58 | 4 | 8.82 | 1 |
| CFPS2250 | 2 | 250 | 124 | 4.88 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 16 | 35.27 | 21 | 46.3 | 5 | 11.02 | 1 |
| CFPS2300 | 2 | 300 | 145 | 5.71 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 18.5 | 40.79 | 24.5 | 54.01 | 6 | 13.23 | 1 |
| CFPS2350 | 2 | 350 | 124 | 4.88 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 21 | 46.3 | 28 | 61.73 | 7 | 15.43 | 1 |
| CFPS2420 | 2 | 420 | 145 | 5.71 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 24.5 | 54.01 | 33 | 72.75 | 8.5 | 18.74 | 1 |
| CFPS2500 | 2 | 500 | 166 | 6.54 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 26 | 57.32 | 36 | 79.37 | 10 | 22.05 | 1 |
| CFPS2600 | 2 | 600 | 145 | 5.71 | 206 | 8.1 | 645 | 25.4 | 700 | 27.6 | 31 | 68.34 | 43 | 94.8 | 12 | 26.46 | 1 |
| CFPS2770 | 2 | 770 | 253 | 9.96 | 210 | 8.3 | 472 | 18.6 | 527 | 20.8 | 42.5 | 93.7 | 58 | 127.87 | 15.5 | 34.17 | 1 |
| CFPS2800 | 2 | 800 | 191 | 7.52 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 44 | 97 | 60 | 132.28 | 16 | 35.27 | 2 |
| CFPS21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 52 | 114.6 | 72 | 158.73 | 20 | 44.09 | 2 |
| CFPS21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 62 | 136.7 | 86 | 189.6 | 24 | 52.91 | 2 |
| CFPS21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.3 | 795 | 31.3 | 850 | 33.5 | 75 | 165.4 | 105 | 231.49 | 30 | 66.14 | 2 |
| CFPS22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.3 | 771 | 30.4 | 826 | 32.5 | 108 | 238.1 | 150 | 330.69 | 42 | 92.59 | 3 |
| CFPS22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 130 | 286.6 | 183 | 403.45 | 52 | 114.6 | 4 |
| CFPS23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 157 | 346.1 | 220 | 485.02 | 63 | 138.9 | 4 |
| LFPS680 | 6 | 80 | 194 | 7.64 | 170 | 6.7 | 205 | 8.07 | 210 | 8.27 | 11.4 | 25.13 | 14 | 30.86 | 2.6 | 5.73 | 1 |
| LFPS6100 | 6 | 100 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 13.6 | 29.98 | 19 | 41.89 | 5.4 | 11.9 | |
| LFPS6120 | 6 | 120 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 15.5 | 34.17 | 22 | 48.5 | 6.5 | 14.33 | |
| LFPS6140 | 6 | 140 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 17.7 | 39.02 | 25 | 55.12 | 7.3 | 16.09 | |
| LFPS6140E | 6 | 140 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.2 | 40.12 | 26 | 57.32 | 7.8 | 17.2 | |
| LFPS6160 | 6 | 160 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.5 | 40.79 | 27 | 59.52 | 8.5 | 18.74 | |
| LFPS6180E | 6 | 180 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 19.5 | 42.99 | 29 | 63.93 | 9.5 | 20.94 | |
| LFPS6180 | 6 | 180 | 321 | 12.6 | 176 | 6.9 | 226 | 8.9 | 229 | 9.02 | 20.5 | 45.19 | 30.5 | 67.24 | 10 | 22.05 | |
| LFPS1260 | 12 | 60 | 260 | 10.2 | 168 | 6.6 | 211 | 8.31 | 233 | 9.17 | 15.9 | 35.05 | 20.8 | 45.86 | 4.9 | 10.8 | |
| LFPS1280E | 12 | 80 | 306 | 12.1 | 169 | 6.7 | 211 | 8.31 | 233 | 9.17 | 20.7 | 45.64 | 27.5 | 60.63 | 6.8 | 14.99 | |
| LFPS1280 | 12 | 80 | 330 | 13 | 171 | 6.7 | 214 | 8.43 | 220 | 8.66 | 20 | 44.09 | 27.8 | 61.29 | 7.8 | 17.2 | |
| LFPS12100 | 12 | 100 | 409 | 16.1 | 176 | 6.9 | 225 | 8.86 | 225 | 8.86 | 24.5 | 54.01 | 35 | 77.16 | 10.5 | 23.15 | |
| LFPS12120 | 12 | 120 | 485 | 19.1 | 172 | 6.8 | 240 | 9.45 | 240 | 9.45 | 29.4 | 64.82 | 42.5 | 93.7 | 13.1 | 28.88 | |
| LFPS12140 | 12 | 140 | 494 | 19.5 | 206 | 8.1 | 209 | 8.23 | 235 | 9.25 | 31.8 | 70.11 | 46.5 | 102.51 | 14.7 | 32.41 | |
| LFPS12140A | 12 | 140 | 532 | 20.9 | 207 | 8.2 | 215 | 8.46 | 240 | 9.45 | 32.5 | 71.65 | 48.5 | 106.92 | 16 | 35.27 | |
| LFPS12160 | 12 | 160 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 36.7 | 80.91 | 53.5 | 117.95 | 16.8 | 37.04 | |
| LFPS12180 | 12 | 180 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 41.6 | 91.71 | 60.5 | 133.38 | 18.9 | 41.67 | |
| LFPS12180H | 12 | 180 | 522 | 20.6 | 269 | 11 | 220 | 8.66 | 220 | 8.66 | 42.5 | 93.7 | 62.5 | 137.79 | 20 | 44.09 | |
| LFPS12200 | 12 | 200 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 46.5 | 102.5 | 67.5 | 148.81 | 21 | 46.3 | |
| LFPS12220 | 12 | 220 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 50.4 | 111.1 | 73.5 | 162.04 | 23.1 | 50.93 | |
Company Features
1. VELA Power Technology Co., Ltd. has been a global company that provides high-quality products and reliable service to customers for many years.
2. The capital technology of VELA Power Technology Co., Ltd. is now very rich.
3. Closely centering on the needs of customers, VELA will continue to create value. Please contact us! Focusing on building a future-oriented maintenance free battery is our aim. Please contact us! VELA has been striving to achieve to be the leading traction battery manufacturer. Please contact us!
