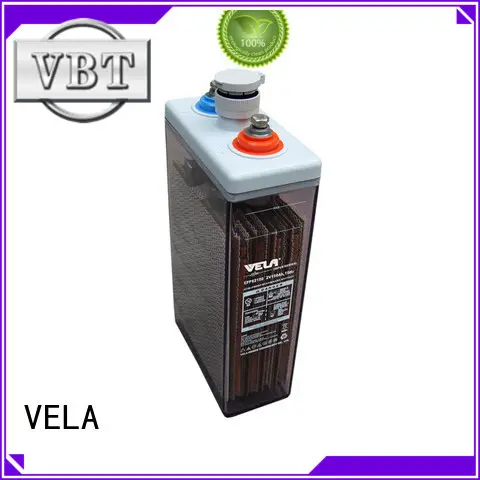

VELA maintenance free battery alarm system
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
L/C,T/T
Supply Ability:
1000000 per Month
Enterprise Strength
- With a sound service system, VELA Industrial Battery is committed to sincerely providing excellent services including pre-sale, in-sale, and after-sale. We meet users' needs and improve the user experience.
1. VELA maintenance free battery has passed the necessary tests that are required in the furniture industry. These tests cover a broad spectrum of aspects such as inflammability, moisture resistance, antibacterial property, and stability.
2. The product features the desired accuracy. During its operation, It consistently performs high standards and runs without any deviations.
3. The demands on this product has been increasing among the customers.
4. The product reaches the requirements of the customers and is popular among customers.
product description
CFPS & LFPS battery is the flooded battery with tubular plate. The users need to maintain and keep the enough electrolyte for the battery to discharge. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. There is the acid-proof bolt. It is of a special shape of funnel having the function of filtering acid smog and retarding flame. It can measure the density and temperature of electrolyte. Its cycle life is the longest in our VRLA battery. The service life can up to 18 years in the 20℃
Application
Features
Long cycle life
Low self discharge rate
High porosity
Good corrosion resistance
Low self discharge rate
High porosity
Good corrosion resistance
General Technical Specifications
| Model | Rated Voltage (V) | Rated Capacity (AH) | Dimensions（mm/in） | Weight ±4%(Kg) | Number of post of the same polarity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | Dry | wet | Acid weight(d=1.24kg/L) | |||||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | Kg | Lbs | Kg | Lbs | ||||
| CFPS2100 | 2 | 100 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 8.5 | 18.74 | 13.5 | 29.76 | 5 | 11.02 | 1 |
| CFPS2150 | 2 | 150 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 11 | 24.25 | 15.5 | 34.17 | 4.5 | 9.92 | 1 |
| CFPS2200 | 2 | 200 | 103 | 4.06 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 13.5 | 29.76 | 17.5 | 38.58 | 4 | 8.82 | 1 |
| CFPS2250 | 2 | 250 | 124 | 4.88 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 16 | 35.27 | 21 | 46.3 | 5 | 11.02 | 1 |
| CFPS2300 | 2 | 300 | 145 | 5.71 | 206 | 8.1 | 354 | 13.9 | 409 | 16.1 | 18.5 | 40.79 | 24.5 | 54.01 | 6 | 13.23 | 1 |
| CFPS2350 | 2 | 350 | 124 | 4.88 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 21 | 46.3 | 28 | 61.73 | 7 | 15.43 | 1 |
| CFPS2420 | 2 | 420 | 145 | 5.71 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 24.5 | 54.01 | 33 | 72.75 | 8.5 | 18.74 | 1 |
| CFPS2500 | 2 | 500 | 166 | 6.54 | 206 | 8.1 | 470 | 18.5 | 525 | 20.7 | 26 | 57.32 | 36 | 79.37 | 10 | 22.05 | 1 |
| CFPS2600 | 2 | 600 | 145 | 5.71 | 206 | 8.1 | 645 | 25.4 | 700 | 27.6 | 31 | 68.34 | 43 | 94.8 | 12 | 26.46 | 1 |
| CFPS2770 | 2 | 770 | 253 | 9.96 | 210 | 8.3 | 472 | 18.6 | 527 | 20.8 | 42.5 | 93.7 | 58 | 127.87 | 15.5 | 34.17 | 1 |
| CFPS2800 | 2 | 800 | 191 | 7.52 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 44 | 97 | 60 | 132.28 | 16 | 35.27 | 2 |
| CFPS21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 52 | 114.6 | 72 | 158.73 | 20 | 44.09 | 2 |
| CFPS21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.3 | 645 | 25.4 | 700 | 27.6 | 62 | 136.7 | 86 | 189.6 | 24 | 52.91 | 2 |
| CFPS21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.3 | 795 | 31.3 | 850 | 33.5 | 75 | 165.4 | 105 | 231.49 | 30 | 66.14 | 2 |
| CFPS22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.3 | 771 | 30.4 | 826 | 32.5 | 108 | 238.1 | 150 | 330.69 | 42 | 92.59 | 3 |
| CFPS22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 130 | 286.6 | 183 | 403.45 | 52 | 114.6 | 4 |
| CFPS23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.4 | 771 | 30.4 | 826 | 32.5 | 157 | 346.1 | 220 | 485.02 | 63 | 138.9 | 4 |
| LFPS680 | 6 | 80 | 194 | 7.64 | 170 | 6.7 | 205 | 8.07 | 210 | 8.27 | 11.4 | 25.13 | 14 | 30.86 | 2.6 | 5.73 | 1 |
| LFPS6100 | 6 | 100 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 13.6 | 29.98 | 19 | 41.89 | 5.4 | 11.9 | |
| LFPS6120 | 6 | 120 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 15.5 | 34.17 | 22 | 48.5 | 6.5 | 14.33 | |
| LFPS6140 | 6 | 140 | 260 | 10.2 | 180 | 7.1 | 245 | 9.65 | 250 | 9.84 | 17.7 | 39.02 | 25 | 55.12 | 7.3 | 16.09 | |
| LFPS6140E | 6 | 140 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.2 | 40.12 | 26 | 57.32 | 7.8 | 17.2 | |
| LFPS6160 | 6 | 160 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 18.5 | 40.79 | 27 | 59.52 | 8.5 | 18.74 | |
| LFPS6180E | 6 | 180 | 307 | 12.1 | 169 | 6.7 | 220 | 8.66 | 225 | 8.86 | 19.5 | 42.99 | 29 | 63.93 | 9.5 | 20.94 | |
| LFPS6180 | 6 | 180 | 321 | 12.6 | 176 | 6.9 | 226 | 8.9 | 229 | 9.02 | 20.5 | 45.19 | 30.5 | 67.24 | 10 | 22.05 | |
| LFPS1260 | 12 | 60 | 260 | 10.2 | 168 | 6.6 | 211 | 8.31 | 233 | 9.17 | 15.9 | 35.05 | 20.8 | 45.86 | 4.9 | 10.8 | |
| LFPS1280E | 12 | 80 | 306 | 12.1 | 169 | 6.7 | 211 | 8.31 | 233 | 9.17 | 20.7 | 45.64 | 27.5 | 60.63 | 6.8 | 14.99 | |
| LFPS1280 | 12 | 80 | 330 | 13 | 171 | 6.7 | 214 | 8.43 | 220 | 8.66 | 20 | 44.09 | 27.8 | 61.29 | 7.8 | 17.2 | |
| LFPS12100 | 12 | 100 | 409 | 16.1 | 176 | 6.9 | 225 | 8.86 | 225 | 8.86 | 24.5 | 54.01 | 35 | 77.16 | 10.5 | 23.15 | |
| LFPS12120 | 12 | 120 | 485 | 19.1 | 172 | 6.8 | 240 | 9.45 | 240 | 9.45 | 29.4 | 64.82 | 42.5 | 93.7 | 13.1 | 28.88 | |
| LFPS12140 | 12 | 140 | 494 | 19.5 | 206 | 8.1 | 209 | 8.23 | 235 | 9.25 | 31.8 | 70.11 | 46.5 | 102.51 | 14.7 | 32.41 | |
| LFPS12140A | 12 | 140 | 532 | 20.9 | 207 | 8.2 | 215 | 8.46 | 240 | 9.45 | 32.5 | 71.65 | 48.5 | 106.92 | 16 | 35.27 | |
| LFPS12160 | 12 | 160 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 36.7 | 80.91 | 53.5 | 117.95 | 16.8 | 37.04 | |
| LFPS12180 | 12 | 180 | 522 | 20.6 | 238 | 9.4 | 218 | 8.58 | 221 | 8.7 | 41.6 | 91.71 | 60.5 | 133.38 | 18.9 | 41.67 | |
| LFPS12180H | 12 | 180 | 522 | 20.6 | 269 | 11 | 220 | 8.66 | 220 | 8.66 | 42.5 | 93.7 | 62.5 | 137.79 | 20 | 44.09 | |
| LFPS12200 | 12 | 200 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 46.5 | 102.5 | 67.5 | 148.81 | 21 | 46.3 | |
| LFPS12220 | 12 | 220 | 521 | 20.5 | 269 | 11 | 203 | 7.99 | 223 | 8.78 | 50.4 | 111.1 | 73.5 | 162.04 | 23.1 | 50.93 | |
Company Features
1. VELA Power Technology Co., Ltd. is an independent and reliable manufacturing firm. Based in China, we mainly manufacture and distribute deep cycle solar batteries .
2. With the introduction of highly advanced technology, VELA not only improves the technical force, but also satisfies the needs of customers.
3. VELA Power Technology Co., Ltd. regards deep cycle battery as the hallmark. Check it! VELA Power Technology Co., Ltd. will never be content with good quality and make a big stride towards top quality. Check it! Attaching great importance of the customer service is essential for the development of VELA. Check it! VELA Power Technology Co., Ltd. aims to create maximum value for customers with flooded battery . Check it!
