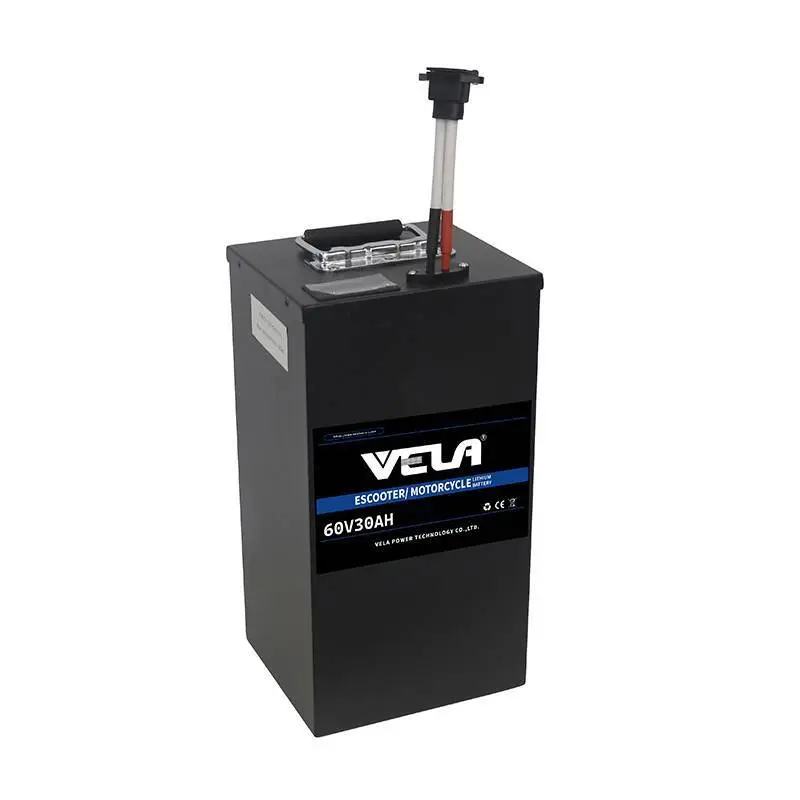

Escooter/ Motorcycle Lithium Battery 60V 30Ah Lithium Battery Pack
5.0
Place of Origin:
China
Brand Name:
VELA&PERSEUS &OEM
Minimum Order Quantity:
100 PCS
Price:
Negotiate
Packing Details:
cartons& pallets or depend on customers
Delivery time:
about 30-35 dyas
Supply Ability:
1000000 per month
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
ELECTRICAL SPECIFICATIONS | |
|---|---|
| Nominal Voltage | 61.2V |
| Nominal Capacity | 30Ah |
| Energy | 1836Wh |
| Series and Parallel Connection | 17S1P |
| Resistance | ≤40 mΩ |
| Cycle Life | ≥800 cycles @80%DOD |
| Power Motor range | 800-2000W |
| Driving Distance | 90Km |
MECHANICAL SPECIFICATIONS | |
|---|---|
| Dimensions (L x W x H) | 340*180*160mm or 215*180*310mm |
| Weight | Approx.10.5KG |
| Chemistry | NCM |
| Cell Type | Prismatic |
| Case Material | Metal |
CHARGE & DISCHARGE SPECIFICATIONS | |
|---|---|
| Standard Charge Current | ≤6A |
| Max Charge Current | ≤15A |
| Continuous discharge current | ≤ 40A |
| Pulse discharge current | ≤80A |
| Over-discharge protection cut-off voltage | 46.7V |
| Over-charge protection cut-off voltage | 71.4V |
TEMPERATURE SPECIFICATIONS | |
|---|---|
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) |
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) |
| Storage Temperature | 77±3 ºF (25±3ºC) |
COMPLIANCE SPECIFICATIONS | |
|---|---|
| Certifications | CE |
| RoHs | |
| UN38.3 | |
Features of 60V motorcycle battery:
1. Lighter weight, smaller size.
2. High-temperature performance.Install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature.
10. Optional bluetooth function, APP can monitor the battery voltage, capacity status.
