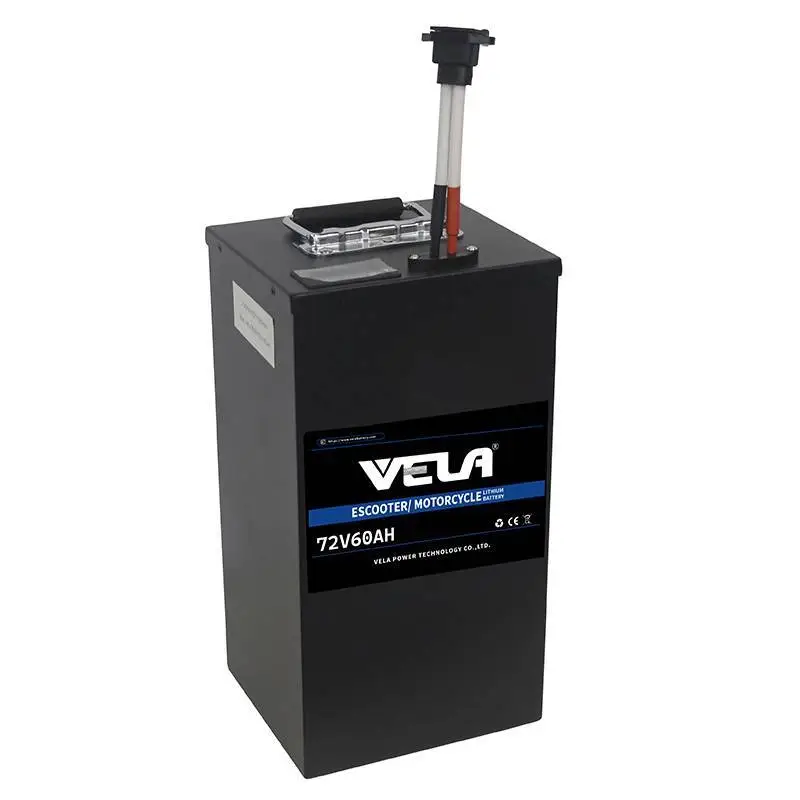

Escooter/ Motorcycle Lithium Battery 72V 60Ah Lithium Battery 1
Escooter/ Motorcycle Lithium Battery 72V 60Ah Lithium Battery 1

Escooter/ Motorcycle Lithium Battery 72V 60Ah Lithium Battery

    oops...!

    no product data.

    Go to homepage

    ELECTRICAL SPECIFICATIONS

    Nominal Voltage72V
    Nominal Capacity60Ah
    Energy4320Wh
    Series and Parallel Connection20S1P
    Resistance≤40 mΩ
    Cycle Life800 cycles @80%DOD
    Motor Power Range800-3000W
    Driving Distance200Km

    MECHANICAL SPECIFICATIONS

    Dimensions (L x W x H)220*190*385mm/260*230*170mm/Customize
    ChemistryNCM
    Cell TypePrismatic
    Case MaterialMetal

    CHARGE & DISCHARGE SPECIFICATIONS

    Standard Charge Current≤12A
    Max Charge Current≤30A
    Continuous discharge current≤ 50A
    Max discharge current≤100A
    Over-discharge protection cut-off voltage56V
    Over-charge protection cut-off voltage84V

    TEMPERATURE SPECIFICATIONS

    Discharge Temperature-4 to 140 ºF (-20 to 60 ºC)
    Charge Temperature32 to 113 ºF (0 to 45 ºC)
    Storage Temperature77±3 ºF  (25±3ºC)

    COMPLIANCE SPECIFICATIONS

    Certifications for cellCE

    RoHs

    UN38.3


    Features of 72V 60Ah lithium motorcycle battery:


    1. Lighter weight, smaller size. Install easily.
    2. Can be customized,1 piece sample order acceptable.
    3. Extremely safe, no explosion, no fire under collision.
    4. Strong over-discharge resistance and charge retention.
    5. Strong charging acceptance and quick-charging capability.
    6. Maintenance-free and no acid or water for maintenance in usage.
    7. Large capability and long life for all high power output applications.
    8. Environmentally friendly non-toxic, non-contaminating, no rare metal.
    9. Low self-discharge and good discharge performance at low temperature.
    10. Optional Bluetooth function, APP can monitor the lithium-ion motorcycle battery voltage, capacity status.
