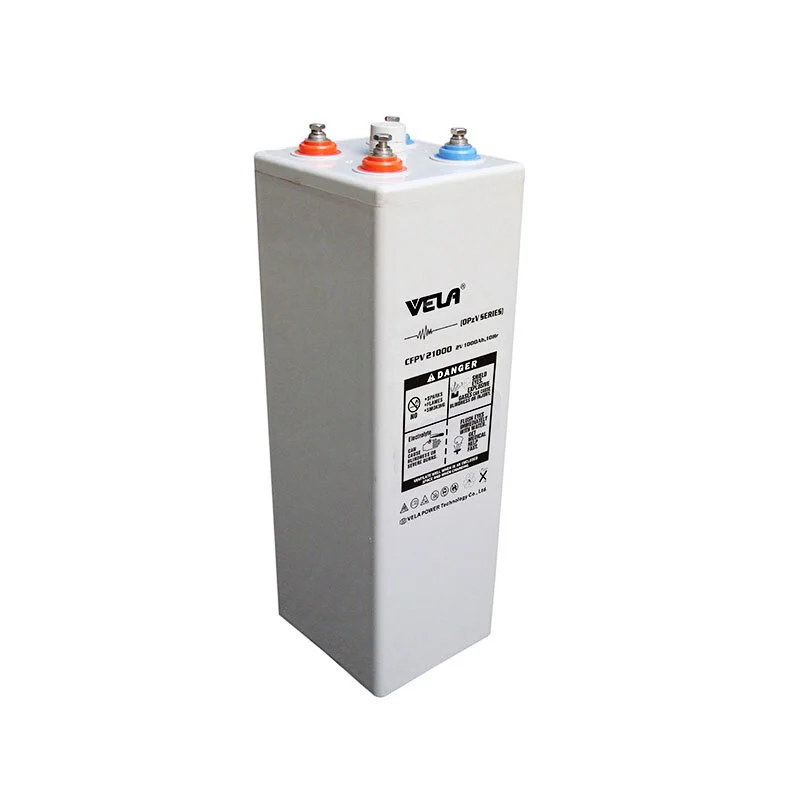

CFPV & LFPV battery
5.0
Place of Origin:
China
Brand Name:
VELA &PERSEUS
Minimum Order Quantity:
100 PCS
Price:
Negotiate
Packing Details:
cartons &pallet,or depend on customer
Delivery time:
about 30 days
Payment terms:
T/T or L/C at sight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
product description
CFPV & LFPV battery is the GEL battery with tubular plate. There is the gel electrolyte in the battery. So the electrolyte will not flow and leakage. The positive plate is adopted the tubular plate. It can prevent the active materials from falling off. The cycle life is three times that of the standard batteries. It can meet the needs of equipment for deep cycle. It is very convenient for the user to us because it is the 100% maintenance free battery.
Application
Features
Long cycle life
Low self discharge rate
Low electrical resistance
Superior wettability
Maintenance free
No flow and leakage
Low self discharge rate
Low electrical resistance
Superior wettability
Maintenance free
No flow and leakage
General Technical Specifications
| Model | Rated Voltage (V) | Rated Capacity (AH) | Dimensions（mm/in） | Weight ±5%(Kg) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | Total Height | |||||||||
| mm | in | mm | in | mm | in | mm | in | Kg | Lbs | |||
| CFPV2200 | 2 | 200 | 103 | 4.06 | 206 | 8.11 | 354 | 13.9 | 390 | 15.4 | 16.5 | 36.3 |
| CFPV2250 | 2 | 250 | 124 | 4.88 | 206 | 8.11 | 354 | 13.9 | 390 | 15.4 | 21.5 | 47.3 |
| CFPV2300 | 2 | 300 | 145 | 5.71 | 206 | 8.11 | 354 | 13.9 | 390 | 15.4 | 23.5 | 51.7 |
| CFPV2350 | 2 | 350 | 124 | 4.88 | 206 | 8.11 | 470 | 18.5 | 506 | 19.9 | 26.5 | 58.3 |
| CFPV2420 | 2 | 420 | 145 | 5.71 | 206 | 8.11 | 470 | 18.5 | 506 | 19.9 | 30.8 | 67.8 |
| CFPV2500 | 2 | 500 | 166 | 6.54 | 206 | 8.11 | 470 | 18.5 | 506 | 19.9 | 35 | 77 |
| CFPV2600 | 2 | 600 | 145 | 5.71 | 206 | 8.11 | 645 | 25.4 | 681 | 26.8 | 44.5 | 97.9 |
| CFPV2770 | 2 | 770 | 253 | 9.96 | 210 | 8.27 | 470 | 18.5 | 506 | 19.9 | 56.5 | 124 |
| CFPV2800 | 2 | 800 | 191 | 7.52 | 210 | 8.27 | 645 | 25.4 | 681 | 26.8 | 59.5 | 131 |
| CFPV21000 | 2 | 1000 | 233 | 9.17 | 210 | 8.27 | 645 | 25.4 | 681 | 26.8 | 69.5 | 153 |
| CFPV21200 | 2 | 1200 | 275 | 10.8 | 210 | 8.27 | 645 | 25.4 | 681 | 26.8 | 82 | 180 |
| CFPV21500 | 2 | 1500 | 275 | 10.8 | 210 | 8.27 | 795 | 31.3 | 831 | 32.7 | 98.5 | 217 |
| CFPV22000 | 2 | 2000 | 399 | 15.7 | 210 | 8.27 | 772 | 30.4 | 807 | 31.8 | 149.5 | 328.9 |
| CFPV22500 | 2 | 2500 | 487 | 19.2 | 212 | 8.35 | 772 | 30.4 | 807 | 31.8 | 174 | 383 |
| CFPV23000 | 2 | 3000 | 576 | 22.7 | 212 | 8.35 | 772 | 30.4 | 807 | 31.8 | 209.5 | 461 |
| LFPV680 | 6 | 80 | 194 | 7.64 | 170 | 6.69 | 205 | 8.07 | 210 | 8.27 | 14.5 | 31.9 |
| LFPV6100 | 6 | 100 | 260 | 10.2 | 180 | 7.09 | 245 | 9.65 | 250 | 9.84 | 24.5 | 53.9 |
| LFPV6120 | 6 | 120 | 260 | 10.2 | 180 | 7.09 | 245 | 9.65 | 250 | 9.84 | 26.5 | 58.3 |
| LFPV6140 | 6 | 140 | 307 | 12.1 | 169 | 6.65 | 220 | 8.66 | 225 | 8.86 | 27 | 59.4 |
| LFPV6160E | 6 | 160 | 307 | 12.1 | 169 | 6.65 | 220 | 8.66 | 225 | 8.86 | 28 | 61.6 |
| LFPV6160 | 6 | 160 | 321 | 12.6 | 176 | 6.93 | 226 | 8.9 | 246 | 9.69 | 29.5 | 64.9 |
| LFPV1260 | 12 | 60 | 260 | 10.2 | 168 | 6.61 | 211 | 8.31 | 233 | 9.17 | 22 | 48.4 |
| LFPV1280 | 12 | 80 | 330 | 13 | 171 | 6.73 | 214 | 8.43 | 220 | 8.66 | 30.5 | 67.1 |
| LFPV12100 | 12 | 100 | 409 | 16.1 | 176 | 6.93 | 225 | 8.86 | 225 | 8.86 | 34.5 | 75.9 |
| LFPV12120 | 12 | 120 | 485 | 19.1 | 172 | 6.77 | 240 | 9.45 | 240 | 9.45 | 43.5 | 95.7 |
| LFPV12140 | 12 | 140 | 494 | 19.5 | 206 | 8.11 | 209 | 8.23 | 235 | 9.25 | 51.5 | 113 |
| LFPV12140E | 12 | 140 | 532 | 20.9 | 207 | 8.15 | 215 | 8.46 | 240 | 9.45 | 52.5 | 116 |
| LFPV12160 | 12 | 160 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 221 | 8.7 | 61.5 | 135 |
| LFPV12180 | 12 | 180 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 221 | 8.7 | 65.5 | 144 |
| LFPV12200 | 12 | 200 | 521 | 20.5 | 269 | 10.6 | 203 | 7.99 | 223 | 8.78 | 73.5 | 162 |
