Powering the Future with Vela Power

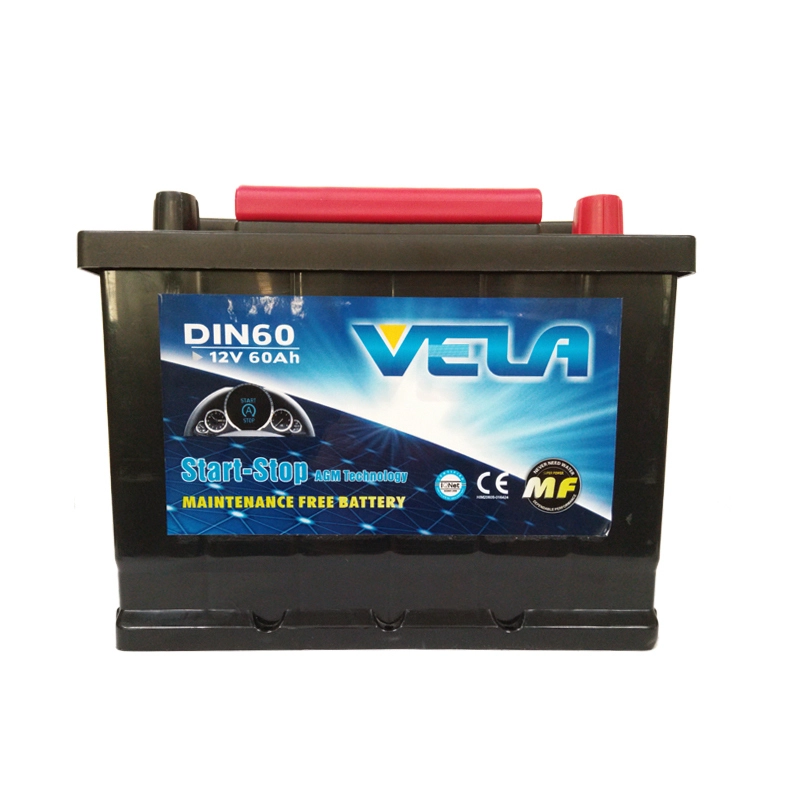

Start-stop battery

Place of Origin:

China

Brand Name:

VELA &PERSEUS&OEM

Minimum Order Quantity:

100 PCS

Price:

Negotiate

Packing Details:

cartons &pallet,or depend on customer

Delivery time:

about 30 days

Payment terms:

L/C,T/T

Supply Ability:

1000000 per Month

Inquiry

Write a Review

VELA START STOP BATTERY CATALOG
Model	Capacity	CCA	Lay out	Terminal	L	W	H
Model	20HR(Ah)	At -18℃	Lay out	Terminal	L	W	H
DIN60L	60	605	0	A	243	175	190
DIN70L	70	650	0	A	279	175	175
DIN75L	75	690	0	A	279	174	190
DIN88L	88	755	0	A	353	175	190
DIN100L	100	840	0	A	353	175	190

Start-stop battery is used for the automotive with start-stop system. Start-stop battery are more commonly used in European and American countries. More and more developing countries are also starting to use automobile with start-stop systems.

Advantages

• High acid resistance
• Less internal resistance
• Extend the life of lead-acid batteries
• Good deep discharge performance, allowing frequent high current discharge in a short time
• The highest cold start ampere (CCA) enables the engine to start even in extreme weather conditions while maintaining comfort and safety features
• Low self discharge rate
• Longer life
• Environmentally friendly

characteristic

• High cranking performance (CCA – Cold Cranking Amps) to suit modern engine starting needs
• Latest lead acid technology to meet the demands of modern market conditions
• Designed and constructed to achieve Heavy Duty outputs in testing market environments
• Maintenance free construction with easy vent plug access for checking electrolyte levels – ensures maximum battery performance and life
• Carry handles to allow for ease of transport
• Can be used for cranking, igniting and lighting
• Low self discharge rate
• Longer life
• Environmentally friendly

product details

Pure lead terminal

Indicator display battery's state of charge

Portable handle

product description

part.1

Maintenance

The indicator on cell cover can display the battery’s state of charge. When it displays “Green”, the battery can work normally. When it displays “White”, the battery should charge in time. When it displays “Red”, the battery should be replaced at once.

part.2

Recharging

After long periods of storage (6 months or more) the battery will need to be recharged when the terminal voltage falls below 12.5 V. When recharging, please keep yourself and your colleagues safe by following all the relevant safety recommendations (such as wearing protective glasses).

part.3

Checking the terminal voltage

The terminal voltage should be checked six months after the date of manufacture. And if the voltage has dropped below 12.5 V, the battery needs to be recharged to between 12.7 and 12.8 V before being stored further.

part.4

Recharging recommendations

If the terminal voltage drops below 12.5 V, the battery must be recharged. The recommended charge current equates to one tenth of the battery’s nominal capacity (e.g. 8 A for a battery with a nominal capacity of 80 Ah). How long the battery needs to be recharged obviously depends on how it’s going to be used afterwards.

part.5

STORAGE

1 This type of battery is a liquid lead-acid battery and should be stored in a dry, clean, well-ventilated place at a temperature of 5-25°C. Avoid direct sunlight and at least 2 meters from the heat source.
2 The battery must not be placed upside down or tipped over. And must avoid any mechanical impact and heavy pressure.
