Powering the Future with Vela Power

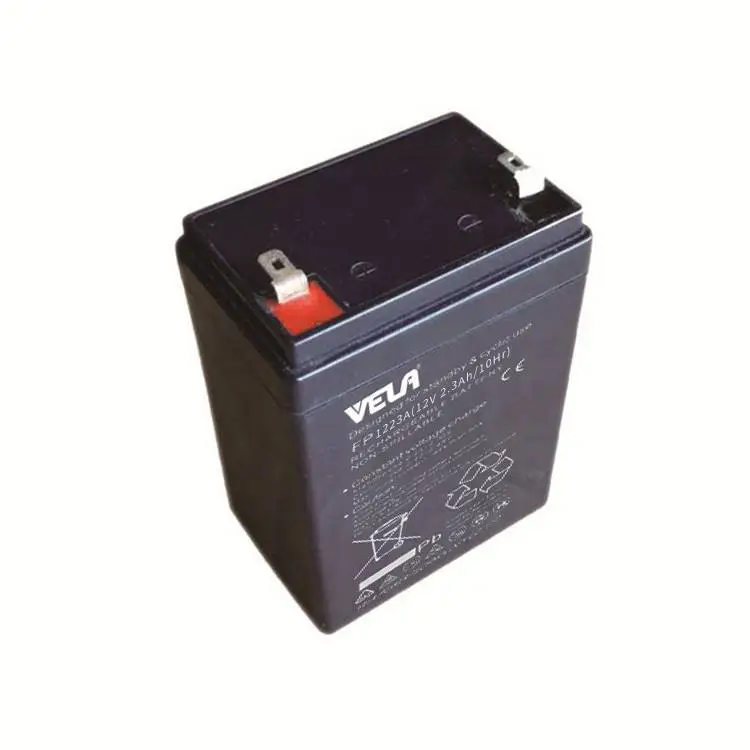

FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 1
FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 1

FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery

    oops...!

    no product data.

    Go to homepage

    12V 2.3Ah UPS Battery Sealed lead acid battery

    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 2
    • Model
      FP1223A
    • Voltage
      12V
    • Capacity
      2.3Ah
    • Internal Resistance
      60mΩ
    • Terminal
      T1
    • Position
      C
    • Weight
      0.8kg
    • Designed floating service life
      10 year
    • Type
      AGM
    • Dimension
      70*48*98*104mm
    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 3
    Lable

    AGM battery, UPS battery, Sealed lead acid battery, SLA battery, Backup battery, SMF battery, Storage battery, 12v battery VRLA battery
    BatteryIntroduction
    VELA FP series AGM battery whose capacity is less than and equal to 28Ah and including 2V battery, 4V battery, 6V battery, 12V battery, 18V battery, 24V battery and 36V battery. FP series batteries are widely used. It can be used as UPS battery, medical battery, scooter battery, wheelchair battery, jump starter battery, car audio battery, garage door opener battery, security alarm battery, Emergency lighting battery, toy car battery, toy motorcycle battery and so on.
    Battery data
    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 4

    Charging Characteristics(25)


    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 5

    Discharge Characteristics(25)

    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 6

    Effect of Temperature on Capacity


    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 7

    Self-discharge Characteristics


                         FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 8


    The Relationship for Open Circuit Voltage and Residual Capacity (25℃)

    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 9

    The Relationship for Charging Voltage and Temperature


    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 10

    Floating Life on Temperature


    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 11

    FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 12FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 13FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 14FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 15FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 16FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 17FP1223A 12V 2.3Ah for 12V Sealed Lead Acid Rechargeable Battery 18Cycle Life on D.O.D(25)
