Powering the Future with Vela Power

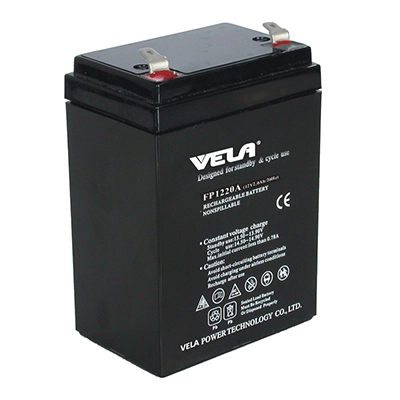

FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 1
FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 1

FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair

    oops...!

    no product data.

    Go to homepage

    12V 2Ah UPS Battery Sealed lead acid battery

    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 2
    • Model
      FP1220A
    • Voltage
      12V
    • Capacity
      2Ah
    • Internal Resistance
      72mΩ
    • Terminal
      T1
    • Position
      C
    • Weight
      0.75kg
    • Designed floating service life
      10 year
    • Type
      AGM
    • Dimension
      70*48*98*108mm
    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 3
    Lable

    AGM battery, UPS battery, Sealed lead acid battery, SLA battery, Backup battery, SMF battery, Storage battery, 12v battery VRLA battery
    BatteryIntroduction
    VELA FP series AGM battery whose capacity is less than and equal to 28Ah and including 2V battery, 4V battery, 6V battery, 12V battery, 18V battery, 24V battery and 36V battery. FP series batteries are widely used. It can be used as UPS battery, medical battery, scooter battery, wheelchair battery, jump starter battery, car audio battery, garage door opener battery, security alarm battery, Emergency lighting battery, toy car battery, toy motorcycle battery and so on.
    Battery data
    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 4

    Charging Characteristics(25)


    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 5

    Discharge Characteristics(25)

    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 6

    Effect of Temperature on Capacity


    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 7

    Self-discharge Characteristics


                         FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 8


    The Relationship for Open Circuit Voltage and Residual Capacity (25℃)

    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 9

    The Relationship for Charging Voltage and Temperature


    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 10

    Floating Life on Temperature


    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 11

    FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 12FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 13FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 14FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 15FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 16FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 17FP1220A 12V 2Ah Small Rechargeable Battery for Wheelchair 18Cycle Life on D.O.D(25)
